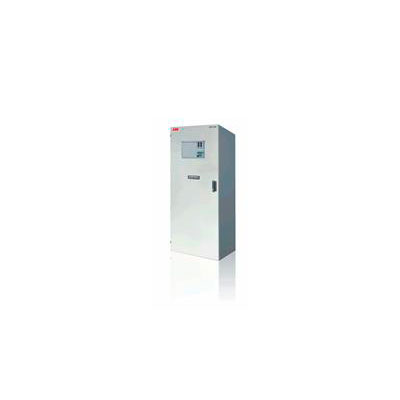

SafeLink CB: Outdoor Ring Main Units for Secondary distribution application
ABB’s newly launched SafeLink CB, Outdoor Ring Main Unit is ideal product suited for rural and urban distribution applications. The product is unique in terms of number of features and value it offers to the customer making it the ideal choice for various applications in utilities network for distribution, hotels, shopping centers, office buildings, business centers, light mining applications, airports, hospitals, tunnels and underground railways etc
Some key features offered by the product.
- 12 kV, 630 A, 21 kA for 3 sec; Metal Enclosed design with IP54 degree of protection with side and rear termination, suitable for Outdoor conditions.
- Internal Arc classified as per latest IEC.
- Fully type tested in STL certified test labs.
- Robotically welded stainless steel tank.
- Vacuum Circuit Breaker with high mechanical endurance of 5000 operations.
- Maintenance free and complete safety for user and pedestrian with no exposure to live parts.
- All in built mandatory safety interlocks provided to ensure operator safety.
- Complete solutions including applications for remote control and monitoring. Recyclable and very low environmental impact
